In the world of manufacturing and engineering, tool steel is a critical component that ensures the durability and efficiency of various tools and dies. Among the various grades of tool steel, H13 stands out for its exceptional performance in both hot work and cold work applications. This versatility makes it a preferred choice for industries that require high resistance to thermal fatigue, shock, and abrasion.
What is Pre-Hard H13 is an interesting one? H13 tool steel is a high-performance material that finds its place in hot work applications.
Here are the key points about it:
Composition and Properties:
- Chemical Composition: H13 steel contains around 5% chromium (Cr) along with molybdenum (Mo) and vanadium (V). These alloying elements contribute to its exceptional properties.
- Toughness and Hardenability: Molybdenum enhances toughness, while vanadium promotes the dispersion of hard vanadium carbides, resulting in excellent wear resistance.
- Secondary Hardening: H13 is a secondary hardening steel, which means it maintains high hardness and strength even at elevated temperatures.
- Applications: It’s widely used for hot work tools, especially in die casting (think aluminum and magnesium), where it battles thermal fatigue, erosion, and wear.
Physical Properties:
- Density: Approximately 7.76 g/cm³ (0.280 lb/in³).
- Specific Heat Capacity: Around 460 J/kg·K (20 °C) or 0.11 Btu/lb·°F (68 °F).
- Elastic Modulus: Roughly 193 GPa (28 x 10⁶ psi) at room temperature.
- Thermal Conductivity: Varies with temperature but hovers around 32.0 W/m·K (20 °C) or 18.5 Btu/ft·h·°F (68 °F).
- Coefficient of Thermal Expansion (CTE): Increases with temperature, ranging from 10.4 μm/m (20-100 °C) to 13.1 μm/m (20-650 °C).
Mechanical Properties (Typical values for tempered H13 steel):
- Tensile Strength: Around 1960 MPa (284 ksi).
- Yield Strength: Approximately 1570 MPa (228 ksi).
- Elongation: About 13.0% in a 4D gage length.
- Hardness: Typically measured in the Rockwell C (HRC) scale, around 46.2 HRC.
- Impact Toughness: Charpy V-notch impact strength is also relevant.
Applications:
H13 is commonly used in cores, cavities for dies, and other tools that require toughness and polishability.
Its stability during heat treatment makes it a reliable choice for various hot and cold work applications. Pre-Hard H13 tool steel, with its standard hardness of 460-500 Brinell Hardness Number (BHN), is particularly sought after. This pre-hardened state allows for immediate use in manufacturing processes without the need for further heat treatment, saving time and resources. It is commonly utilized for components such as ejector pins, apparatus holders, and shrink fit chucks, which are integral to the functioning of machinery.
The applications of Pre-Hard H13 are diverse, ranging from dies for drop forgings to aluminum and low-pressure die casting. It is also used in extrusion processes, containers and liners, punches, plugs, holders, and injection molds. These applications highlight the steel’s ability to withstand the rigorous demands of forming and molding processes.

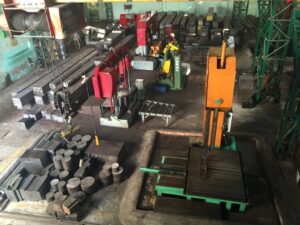

Virat Special Steels, as the largest stockiest and supplier of H13 tool steel, plays a pivotal role in meeting the industrial demand. They offer H13 tool steel in various forms, including flat, square, and round bars, catering to the specific needs of their clients. Their ability to provide steel in all sizes ensures that they can accommodate both large-scale industrial requirements and more precise, custom orders.
The availability of H13 die steel in flat, square, and round shapes further adds to its accessibility for different applications. This adaptability, combined with the steel’s inherent qualities, makes it a valuable asset in the manufacturing sector.
For businesses looking to enhance their tooling capabilities, investing in Pre-Hard H13 tool steel is a strategic move. Its standard hardness, coupled with its resistance to wear and thermal fatigue, makes it an indispensable material for high-performance tools and dies. With suppliers like Virat Special Steels ready to fulfill requirements, the industry can continue to innovate and grow.
To place an order or to learn more about Pre-Hard H13 tool steel, interested parties are encouraged to get in touch with Virat Special Steels. Their expertise and extensive inventory make them a reliable partner for all tool steel needs. #h13steel #din2344 #aisih13 #H13toolsteel #H13diesteel #ViratSpecialSteels
