H13 tool steel is one of the most commonly used hot work steels in the industry, known for its exceptional toughness, high heat resistance, and excellent wear properties. It belongs to the chromium-based tool steel family and is widely used in applications such as die casting, forging, and extrusion.
One of the most critical properties of H13 steel is its hardness, measured in Rockwell Hardness (HRC). The hardness of H13 determines its durability, wear resistance, and ability to withstand high-temperature operations. In this guide, we will explore the HRC rating, hardness specifications, and factors affecting the hardness of H13 material.
Composition of H13 Steel
H13 steel is an air-hardening tool steel with a balanced composition of key elements that contribute to its superior performance. Below is the typical chemical composition of H13 steel:
| Element | Percentage (%) | Function |
| Carbon (C) | 0.35 – 0.45 | Enhances hardness and wear resistance |
| Chromium (Cr) | 4.75 – 5.50 | Provides high-temperature strength and wear resistance |
| Molybdenum (Mo) | 1.10 – 1.75 | Improves toughness and hardenability |
| Vanadium (V) | 0.80 – 1.20 | Enhances wear resistance and impact strength |
| Silicon (Si) | 0.80 – 1.20 | Increases toughness |
| Manganese (Mn) | 0.20 – 0.50 | Improves strength and hardenability |
| Phosphorus (P) | ≤ 0.03 | Considered an impurity, minimal presence |
| Sulfur (S) | ≤ 0.03 | Considered an impurity, minimal presence |
These elements play a crucial role in defining the hardness of H13 steel, especially after heat treatment.
H13 Material Hardness & HRC Rating
What is HRC?
HRC (Rockwell Hardness C scale) is a standard measurement used to determine the hardness of steel. It indicates a material’s ability to resist indentation and wear. The higher the HRC value, the harder the material.
Typical HRC Range of H13 Steel
The hardness of H13 steel varies depending on the heat treatment process. Below are the general HRC values for H13 in different conditions:
- Annealed Condition: 18 – 22 HRC
- Hardened and Tempered: 48 – 54 HRC
- Nitrided Surface: 60 – 65 HRC
These values indicate that H13 steel has excellent hardness and wear resistance, making it ideal for high-stress applications.
Factors Influencing H13 Hardness
The hardness of H13 steel depends on several factors, including:
- Heat Treatment Process – Proper heat treatment is essential to achieve the desired hardness.
- Quenching and Tempering – Rapid cooling and controlled reheating impact the final hardness.
- Cooling Rate – Affects microstructure transformation and hardness levels.
- Composition Variations – Slight changes in chemical composition can alter hardness properties.
Heat Treatment Process for H13 Steel
To optimize the hardness and performance of H13 steel, it undergoes a controlled heat treatment process:
1. Annealing
- Heated to 850-900°C, then slowly cooled
- Softens the material for machining
- Results in hardness of 18-22 HRC
2. Hardening
- Heated to 1000-1050°C
- Quenched in air or oil for rapid cooling
- Achieves maximum hardness of 50-54 HRC
3. Tempering
- Reheated to 550-650°C
- Reduces internal stress while maintaining hardness
- Produces final hardness of 48-52 HRC
H13 Steel Hardness in Different Conditions
| Condition | Hardness (HRC) | Description |
| Annealed | 18 – 22 | Soft state, suitable for machining |
| Hardened | 50 – 54 | Maximum hardness, ideal for tooling |
| Tempered | 48 – 52 | Optimized hardness for durability |
| Nitrided | 60 – 65 | Surface-hardened for wear resistance |
Comparison of H13 Hardness with Other Tool Steels
| Steel Type | Typical HRC | Key Features |
| H13 | 48 – 54 | High-temperature resistance, toughness |
| D2 | 55 – 62 | High wear resistance, used for cold work |
| P20 | 28 – 34 | Softer, used for plastic molds |
| 4140 | 28 – 50 | Medium hardness, used in machinery |
Applications of H13 Based on Hardness
H13 steel‘s hardness makes it suitable for various high-temperature applications, such as:
- Die Casting Dies – High hardness prevents wear in molten metal environments.
- Forging Tools – Withstands impact and heat stress.
- Extrusion Dies – Maintains shape under high pressure.
How to Improve H13 Hardness and Performance
To enhance the hardness and longevity of H13 steel:
- Use Proper Heat Treatment – Follow controlled heating and cooling cycles.
- Apply Surface Treatments – Nitriding, PVD coatings can improve wear resistance.
- Regular Maintenance – Proper storage and handling prevent premature wear.
Conclusion
H13 tool steel is a highly durable and wear-resistant material, making it ideal for hot work applications. With a hardness range of 48-54 HRC after heat treatment, it provides excellent toughness, impact resistance, and longevity. Proper heat treatment and maintenance can further enhance its performance, ensuring a longer tool life.
Mode of Supply:

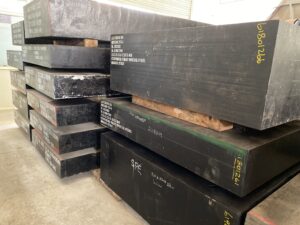

Virat Special Steels is the largest stockiest and supplier of H13 tool steel in flat, square and round bar. We provide steel in all sizes as your requirements. H13 die steel is available in flat, square and round shape. Consult our team who will assist you for h13 steel query.
FAQs
- What is the maximum hardness of H13 steel?
H13 can reach up to 54 HRC after proper hardening and tempering. - Does H13 steel need to be tempered?
Yes, tempering is essential to relieve stress and optimize toughness. - Can H13 steel be nitrided?
Yes, nitriding increases surface hardness to 60-65 HRC. - What industries use H13 steel?
It is widely used in die casting, forging, and plastic molding. - How does heat treatment affect H13 hardness?
Heat treatment significantly improves hardness, durability, and performance.
